Power supply: 230 Vac 50 Hz single phase – 2,5 kVA
• Dimensions: 1600 x 700 x 2000 mm
• Weight: 200 kg

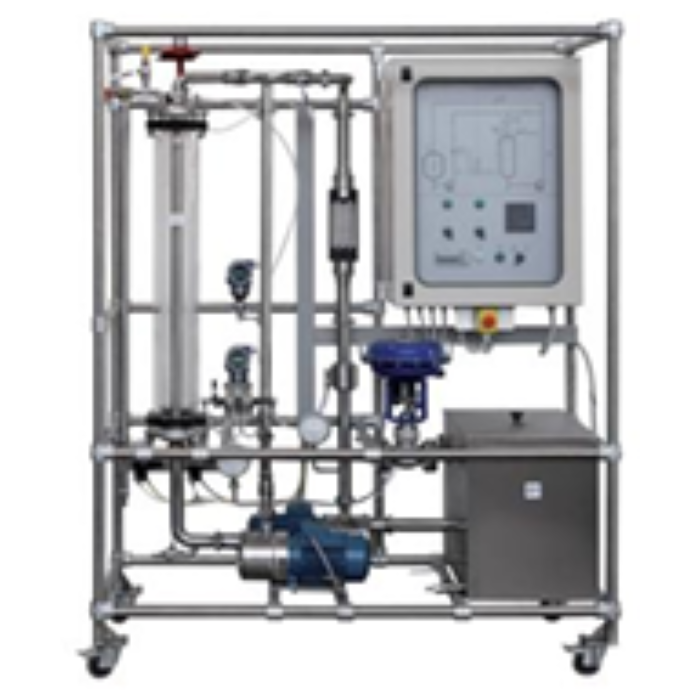

Framework of AISI 304 stainless steel with castors • Column of borosilicate glass, h = 1000 mm, d = 100 mm • Tank for water of AISI 304 stainless steel with capacity of 100 litres • 2 centrifugal pumps with case and rotor of AISI 304 stainless steel, Q = 4 m³/h, maximum head of 30 m • Pneumatic control valve of AISI 304 stainless steel, Cv = 4 • Pneumatic control valve of AISI 316 stainless steel, Cv = 0.32 • Electronic differential-pressure transmitter of AISI 316 stainless steel with range of 0 to 1000 mm H2O and 4 to 20 mA output signal • Calibrated diaphragm of AISI 304 stainless steel with flow rate of 0 to 5 m³/h • Variable-area flowmeter with range of 0.4 to 4 m³/h • Electronic transmitter of relative pressure, in AISI 316 stainless steel with range of 0 to 3 bar and 4 to 20 mA output signal • 2 electro-pneumatic converters, 4 to 20 mA / 0.2 to 1 bar • Electronic microprocessor PID controller, with 4-line Liquid • Crystal Display (LCD) and serial card • Piping and valves of AISI 304 and 316 stainless steel • Switchboard IP55, complying with EC conformity mark, including plant synoptic and ELCB • Emergency pushbutton • SCADA software (for control and data acquisition): this software runs in Windows and enables to control ON OFF • signals, analog signals coming from the PID controller, real time trend and historical trend • Power supply: 230 Vac 50 Hz single phase – 2,5 kVA • Dimensions: 1600 x 700 x 2000 mm • Weight: 200 kg
